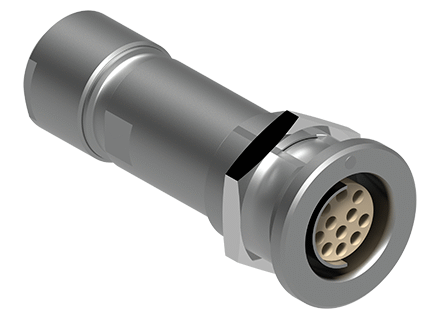

DK 102 Z056-130+面板安裝式電纜插座Fischer
發布時間：2025-01-10 08:39:02 瀏覽：451
觸點數量: 7
連接器類型: Receptacle(插座)
端接類型: Solder(焊接)
安裝類型: Panel Front Mounted(面板前裝)
極性: Reversed(反向)
信號/電源: 低電壓
外殼材料: Brass(黃銅)
外殼顏色: Grey Mat(灰色)
絕緣材料: PEEK
產品線: Core series(核心系列)
系列尺寸: 10
相關型號：
| Connector | Contacts | Termination type | Locking system | Signal / Power | Sealing level |
| DK 102 Z056-130+ | 7 | Solder | Plug dependent | Low Voltage | IP50 |
| 136960 |
| DK 104 Z037-150+ | 4 | Crimp | Plug dependent | Low Voltage | IP50 |
| 135971 |
| DK105 A102-150+ | 27 | Crimp | Plug dependent | Low Voltage | IP50 |
| 132748 |
| DK 103 Z051-150+ | 2 | Crimp | Plug dependent | Low Voltage | IP50 |
| 131432 |
| DK 103 A054-150+ | 5 | Crimp | Plug dependent | Low Voltage | IP50 |
| 127949 |
| DK 103 Z056-130+ | 6 | Solder | Plug dependent | Low Voltage | IP50 |
| 125964 |
| DK104 A06006.7 | 1 | Solder | Plug dependent | Low Voltage Coax | IP50 |
| 119634 |
| DK 105 Z052-130+ | 3 | Solder | Plug dependent | Low Voltage | IP50 |
| 115426 |
| DK 104 A040-100+ | 3 | Crimp | Plug dependent | Low Voltage | IP50 |
| 119363 |
| DK 104 Z040-100+ | 3 | Crimp | Plug dependent | LowVoltage | IP50 |
| 113440 |
| DK105 A067-130+ | 8 | Solder | Plug dependent | Low Voltage | IP50 |
| 112903 |
| DK105 Z069-130+ | 12 | Solder | Plug dependent | Low Voltage | IP50 |
| 112228 |
| DK 104 Z086-130+ | 16 | Solder | Plug dependent | Low Voltage | IP50 |
| 131230 |
| DK 105 A058-150+ | 15 | Crimp | Plug dependent | Low Voltage | IP50 |
| 108544 |
| DK105 Z054-130+ | 7 | Solder | Plug dependent | Low Voltage | IP50 |
| 108201 |
| DK105 Z038-130+ | 18 | Solder | Plug dependent | Low Voltage | IP50 |
| 108199 |
| DK 103 A026-60005.7 | 1 | Solder | Plug dependent | Low Voltage Coax | IP50 |
| 118653 |
| DK 103 A051-130+ | 2 | Solder | Plug dependent | Low Voltage | IP50 |
| 101779 |
| DK 102 A00203.1 | 1 | Solder | Plug dependent | Low Voltage Coax | IP50 |
| 100275 |
| DK103 A053-130+ | 4 | Solder | Plug dependent | Low Voltage | IP50 |
| 101785 |
| DK 103 A002-60006.2 | 1 | Solder | Plug dependent | Low Voltage Coax | IP50 |
| 101268 |
| DK 103 A054-130+ | 5 | Solder | Plug dependent | Low Voltage | IP50 |
| 101638 |
| DK 105 A110-130+ | 16 | Solder | Plug dependent | Low Voltage | IP50 |
| 104834 |
| DK 102 A014+ | 1 | Solder | Plug dependent | Triax | IP50 |
| 100331 |
| DK 103 A057-130+ | 7 | Solder | Plug dependent | Low Voltage | IP50 |
| 101720 |
| DK 102 A053-150+ | 4 | Crimp | Plug dependent | Low Voltage | IP50 |
| 100501 |
| DK 104 Z053-130+ | 5 | Solder | Plug dependent | Low Voltage | IP50 |
| 103885 |
| DK105 A053-130+ | 4 | Solder | Plug dependent | Low Voltage | IP50 |
| 104825 |
| DK105 A054-130+ | 7 | Solder | Plug dependent | Low Voltage | IP50 |
| 104830 |
| DK 102 A054-130+ | 5 | Solder | Plug dependent | Low Voltage | IP50 |
| 100506 |
| DK 103 Z057-130+ | 7 | Solder | Plug dependent | Low Voltage | IP50 |
| 102058 |
| DK103 A052-130+ | 3 | Solder | Plug dependent | Low Voltage | IP50 |
| 101782 |
| DK102 A056-130+ | 7 | Solder | Plug dependent | Low Voltage | IP50 |
| 100628 |
| DK 102 A053-130+ | 4 | Solder | Plug dependent | LowVoltage | IP50 |
| 100500 |
| DK 102 A056-150+ | 7 | Crimp | Plug dependent | Low Voltage | IP50 |
| 100667 |
| DK104 A055-130+ | 9 | Solder | Plug dependent | LowVoltage | IP50 |
| 103035 |
| DK104 A056-130+ | 11 | Solder | Plug dependent | Low Voltage | IP50 |
| 103060 |
| DK 102 A054-150+ | 5 | Crimp | Plug dependent | LowVoltage | IP50 |
| 100507 |
| DK 104 A086-130+ | 16 | Solder | Plug dependent | Low Voltage | IP50 |
| 103120 |
| DK 105 A093-80+ | 24 | Solder | Plug dependent | Low Voltage | IP50 |
| 108278 |
| DK 106A007+ | 7 | Solder | Plug dependent | Low Voltage | IP50 |
| 105752 |
| DK 104 A086-150+ | 16 | Crimp | Plug dependent | Low Voltage | IP50 |
| 103284 |
| DK 102 A00202.6 | 1 | Solder | Plug dependent | Low Voltage Coax | IP50 |
| 100274 |
| DK 105 A104-130+ | 13 | Solder | Plug dependent | Low Voltage | IP50 |
| 105025 |
| DK104 A037-130+ | 4 | Solder | Plug dependent | Low Voltage | IP50 |
| 103342 |
| DK104 A056-150+ | 11 | Crimp | Plug dependent | Low Voltage | IP50 |
| 103442 |
| DK 103 A056-130+ | 6 | Solder | Plug dependent | Low Voltage | IP50 |
| 101693 |
| DK 104 A066-130+ | 8 | Solder | Plug dependent | Low Voltage | IP50 |
| 103443 |
| DK105 A002-60005.2 | 1 | Solder | Plug dependent | Low Voltage Coax | IP50 |
| 104383 |
| DK 104 A065-150+ | 6 | Crimp | Plug dependent | Low Voltage | IP50 |
| 103475 |
| DK104 A060-60007.7 | 1 | Solder | Plug dependent | Low Voltage Coax | IP50 |
| 102705 |
| DK 104 Z056-130+ | 11 | Solder | Plug dependent | Low Voltage | IP50 |
| 103774 |
| DK 105 A002-600010.7 | 1 | Solder | Plug dependent | Low Voltage Coax | IP50 |
| 104384 |
| DK 105 A058-130+ | 15 | Solder | Plug dependent | LowVoltage | IP50 |
| 104586 |
| DK 105 A038-150+ | 18 | Crimp | Plug dependent | Low Voltage | IP50 |
| 104618 |
| DK103 A026-600 O2.7 | 1 | Solder | Plug dependent | Low Voltage Coax | IP50 |
| 101802 |
| DK 102 A051-130+ | 2 | Solder | Plug dependent | Low Voltage | IP50 |
| 100733 |
| DK 105 A069-130+ | 12 | Solder | Plug dependent | Low Voltage | IP50 |
| 104906 |
| DK 102 A052-130+ | 3 | Solder | Plug dependent | Low Voltage | IP50 |
| 100545 |
| DK 105 A038-130+ | 18 | Solder | Plug dependent | Low Voltage | IP50 |
| 104908 |
| DK 107 A013+ | 4 | Solder | Plug dependent | LowVoltage | IP50 |
| 105962 |
| DK 105 A052-130+ | 3 | Solder | Plug dependent | Low Voltage | IP50 |
| 105091 |
| DK 103 A015+ | 1 | Solder | Plug dependent | Triax | IP50 |
| 101686 |
| DK 104 A053-130+ | 5 | Solder | Plug dependent | Low Voltage | IP50 |
| 103333 |
| DK 106 A017+ | 24 | Solder | Plug dependent | LowVoltage | IP50 |
| 105661 |
Fischer Connectors是一家連接器公司，其產品以高可靠性、密封性和耐用性著稱，廣泛應用于軍事、醫療、工業和通信領域。公司的產品線包括Core系列、UltiMate? 系列和Freedom? 系列等。深圳市立維創展科技有限公司優勢代理分銷Fischer連接器，歡迎咨詢了解。
